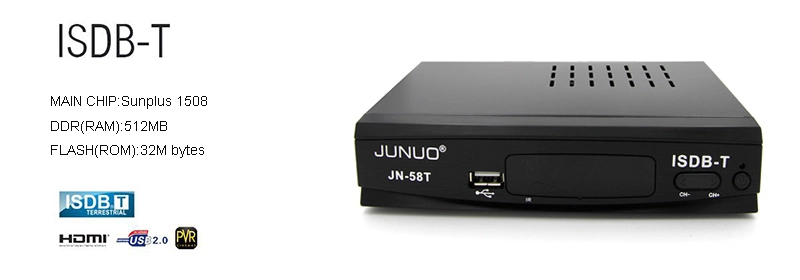

PVR Ready WiFi Youtube IPTV tv box ISDB-T digital Set Top Box
Features : | Tuner : | |||||||||
1.supports MHEG4 2. Compatible with 576i/576p/720p/1,080i/1080P video formats 3. Sunplus 1508A chipset solution support youtube function with DDR 512MB 4. Fully compliant with isdb-t standard 5. Supports HDMI 1.3 (1080P) 6. Auto and manually scan all available TV and radio channels,Parental guidance locking 7. Auto/manual program search, multi-language supported 8. Supports MPEG-1, MPEG-2, MPEG-4 and H.264 decoder (up to 1,920 x 1,080 pixels) 9. Advanced audio processor supporting Dolby Digital and Dolby Digital Plus (optional) 10. USB2.0 host support upgrade, PVR, time shifting and media play with U-Flash or HDD 11. Supports HDMI output, scart output, coaxial, RF in and output 12. Frequency Range: VHF 177 .143~213.143MHZ, UHF 473.143~803.143MHZ 13.Powerful and highly effective 7days EPG function 14. use wifi dongle to connect with wifi , and then play youtube function to watch videos | *Input Frequency: VHF 177 .143~213.143MHZ, UHF 473.143~803.143MHZ *RF input level: -78~20 dBm *RF Bandwidth: 7MHZ and 8MHZ *Signal input: IEC-type female *QPSK, 16QAM,64QAM, 256QAM *FEC: 1/2, 2/3, 3/4, 4/5, 5/6 | |||||||||
Multimedia format : | ||||||||||
*Decoder format: MPEG 4 AVC/H.264 HP@L4MPEG2 MP@MP.HL *Output format:480i/480p/567i/567p/720i/720p/1080p/1080i *Output port: HDMI,AV/Scart(optional) *Decoder fomat: MPEG-1(layer 1&2&3),WMA.AC3,AAC *Audio output: Coaxial, L/R(AV or Scart) | ||||||||||
Power : | ||||||||||
*Maximum power consumption:< 10w *Standby power: <1w | ||||||||||
Packing : | Hardware Interface : | |||||||||
packing : 1 Color Box Color box : 190*170*50mm Qty per export carton : 20pcs pieces Meas. per export carton : 400*270*360mm One Color box include: 1* DVB-T2 HD Receiver 1* Remote Controler 1* AV Cable 1* User Manual 1*hdmi cable | *Indicators: Power, signal lock *IR Receiver: 38KHZ *LED Display *HDMI 1.3 *Loop through output: IEC- type, connector,single tuner *Coaxial output *USB2.0 *RCA Output |
