Mini Digital Set Top Box DVB-T2 Scart TV Tuner

Products InformationsSpecification:Features :1.DVB-T2/DVB-T compatible, supports MHEG42. Compatible with 576i/576p/720p/1,080i/1080P video formats3. Sunplus 1509M chipset solution4. Fully compliant with DVB-T2 standard5. Auto and manually scan all available TV and radio channels,Parental guidance locking6. Auto/manual program se

Featured Products

Products Informations
Specification:
Features :1.DVB-T2/DVB-T compatible, supports MHEG4
2. Compatible with 576i/576p/720p/1,080i/1080P video formats
3. Sunplus 1509M chipset solution
4. Fully compliant with DVB-T2 standard
5. Auto and manually scan all available TV and radio channels,Parental guidance locking
6. Auto/manual program search, multi-language supported
7. Supports MPEG-1, MPEG-2, MPEG-4 and H.264 decoder (up to 1,920 x 1,080 pixels)
8. USB2.0 host support upgrade, PVR, time shifting and media play with U-Flash or HDD
9. Supports HDMI output, scart output, coaxial, RF in and output
10.Powerful and highly effective 7days EPG function
Tuner :



*Input Frequency: VHF 174~230 MHZ, UFH 470~ 862 MHZ
*RF input level: -78~20 dBm
*RF Bandwidth: 7MHZ and 8MHZ
*Signal input: IEC-type female
*QPSK, 16QAM,64QAM, 256QAM
*FEC: 1/2, 2/3, 3/4, 4/5, 5/6

Multimedia format :



*Decoder format: MPEG 4 HEVC H.265 AVC/H.264 HP&L4MPEG2 MP&MP.HL
*Output format:480i/480p/567i/567p/720i/720p/1080p/1080i
*Output port: HDMI,AV/Scart(optional)
*Decoder fomat: MPEG-1(layer 1&2&3),WMA.AC3,AAC
*Audio output: Coaxial, L/R(AV or Scart)



Power :

*Maximum power consumption:< 10w *Standby power: <1w

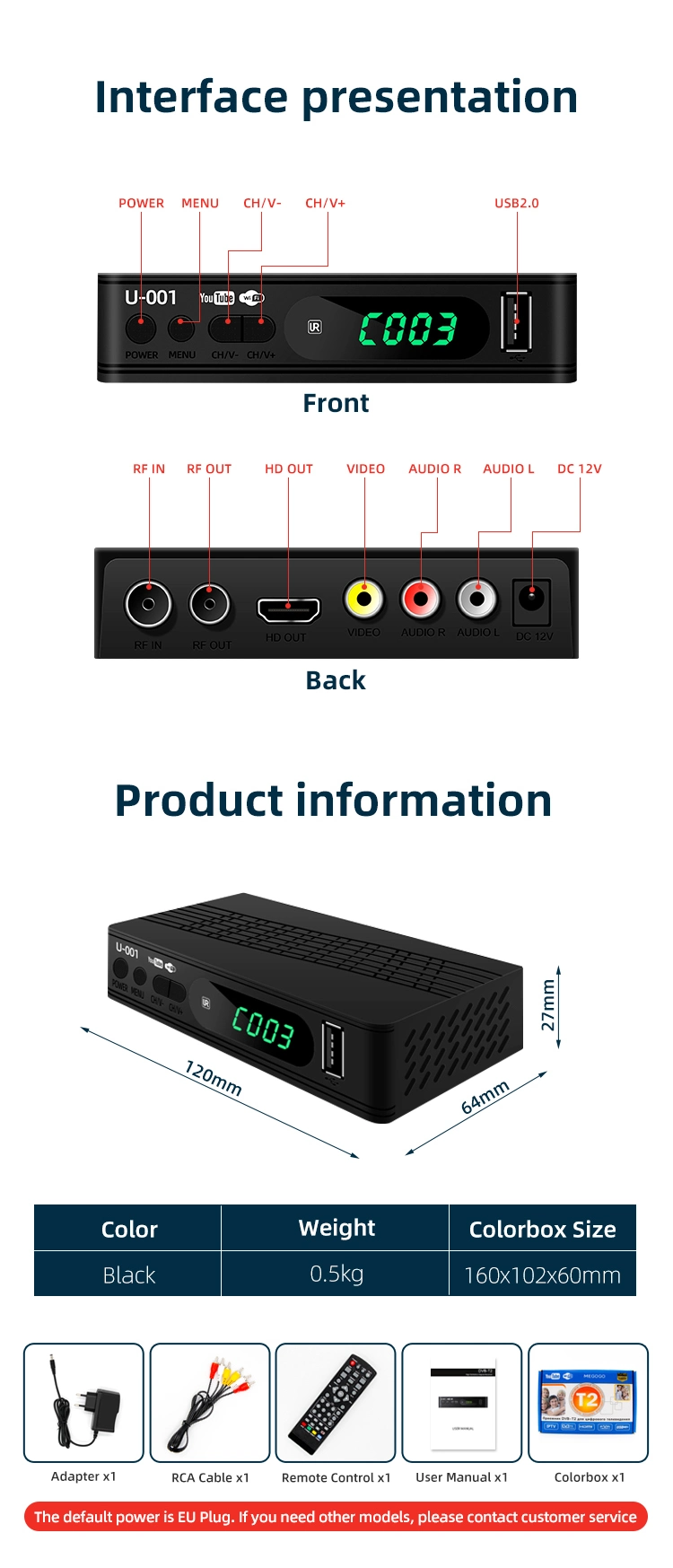

Hardware Interface :



*Indicators: Power, signal lock
*IR Receiver: 38KHZ
*LED Display                     *HDMI 1.4
*Loop through output: IEC- type, connector,single tuner
*Coaxial output*USB2.0
*RCA Output(optional)*Scart Output

Packing :



packing: 1 Color Box
Color box : 250*60*255mm
Qty per export carton: 20pcs pieces
Meas. per export carton : 375*260*235mm


One Color box include:

1* DVB-T2 HD Receiver 1* Remote Controler
1* AV Cable/Scart Cable  1* User Manual

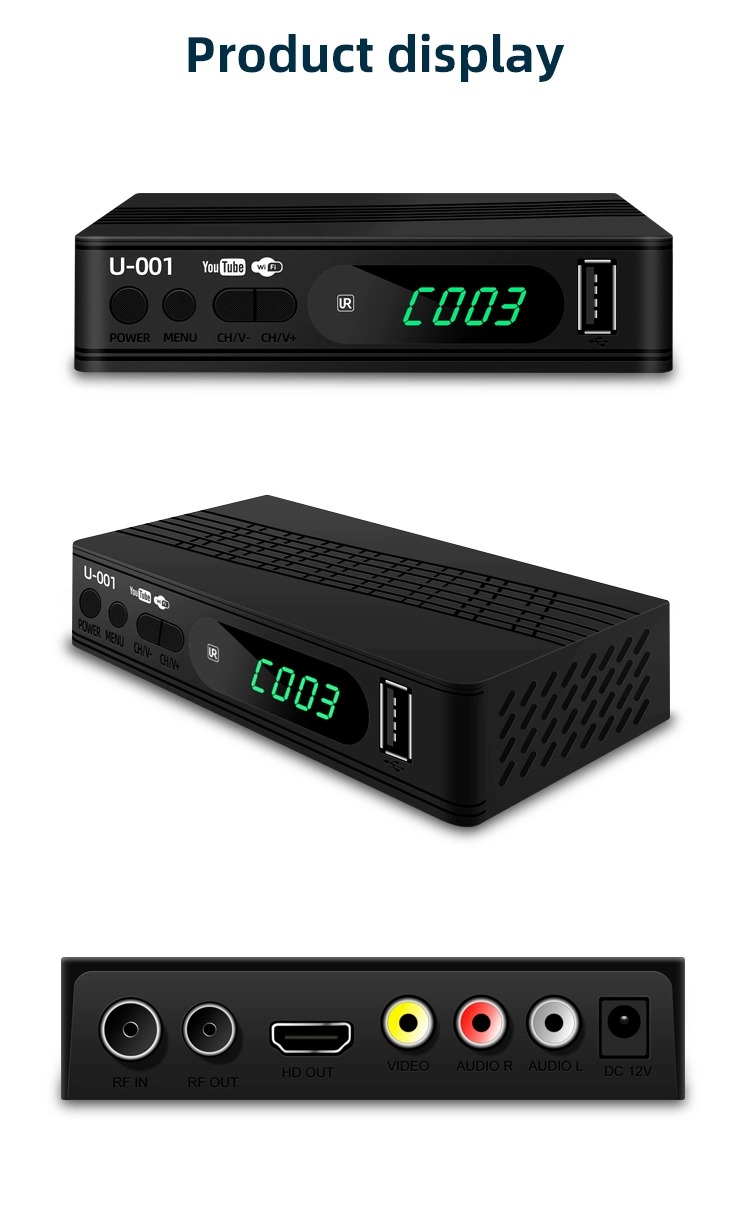

Products Pictures
Mini Digital Set Top Box DVB-T2 Scart TV Tuner
Mini Digital Set Top Box DVB-T2 Scart TV Tuner
Mini Digital Set Top Box DVB-T2 Scart TV Tuner
Mini Digital Set Top Box DVB-T2 Scart TV Tuner
Mini Digital Set Top Box DVB-T2 Scart TV Tuner
Mini Digital Set Top Box DVB-T2 Scart TV Tuner
Mini Digital Set Top Box DVB-T2 Scart TV Tuner
Mini Digital Set Top Box DVB-T2 Scart TV Tuner
Mini Digital Set Top Box DVB-T2 Scart TV Tuner
Mini Digital Set Top Box DVB-T2 Scart TV Tuner



About Junuo

Founded in Feb 2000, Shenzhen Junuo Electronic Company is a comprehensive enterprise integrating R&D, production and sales of Set Top Box, including Android TV Box,DVB-T2, ISDB-T,ATSC,DVB-S2 and so on.

We offer one-stop sevice of ODM&OEM projects, CKD/SKD or completed device orders are welcomed!
