Satellite Receiver DVB C Cable TV Box

Main Features


  • Fully compliant with DVB-C digital TV reception standards
  • Support HDTV/SDTV MPEG-2 & MPEG-4 H.264decoding
  • Support advanced CAS
  • Support 480i/480p/576i/576p/720p/1080i/1080P
  • HDMI output for High Definition
  • Support teletext/subtitle/multi-language
  • Support EPG
  • Channel edit function including Favorite , Move, Delete, Lock, Skip, Rename
  • Variable aspect ratio (4:3/16:9) 4:3 Pan & Scan or Letter Box modes
  • Support USB & OTA software upgrade
  • Support USB 2.0 PVR. MP3, AVI,DAT,MKV,MP4,VOB,BMP,JPG photo playback

DVB C Digital Receiver Cable TV Set Top Box
Technical Specification

Chipset and Memory
Chipset modelHi3716MV330
CPU Speed1.0GHz @2500DMIPS
Flash8M&128MB
RAMDDR3-128MB&256MB
Power Supply
Power SupplyDC 5V 1.5A
Maximum Power Consumption6W (Typ.)
Standby power ≤ 1W

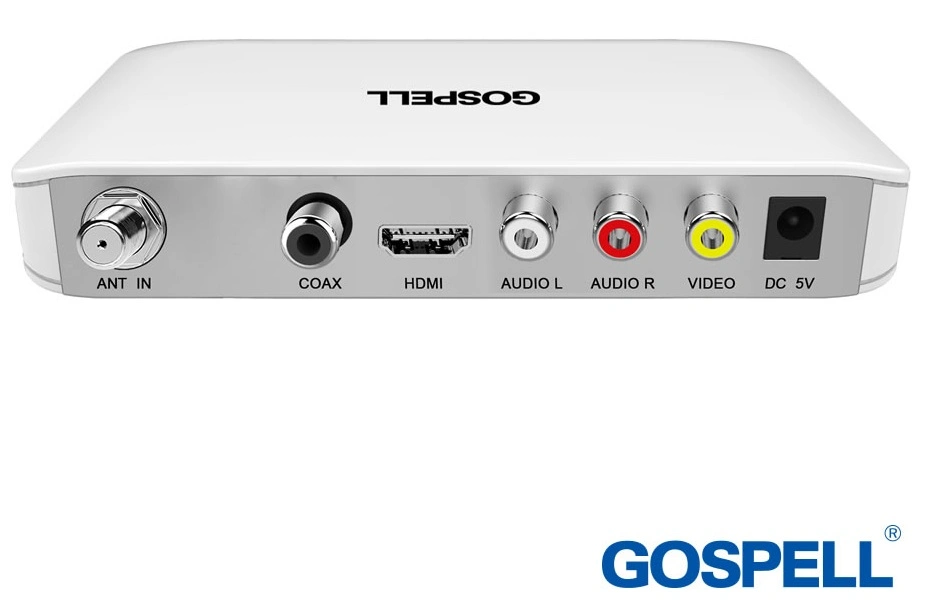

Interface
RF signal inputX1
Video outputX1
Audio outputX1
HDMIX1
Digital Audio output(S/PDIF)X1 (Coax)
USB 2.0 portX1
Tuner
ChipsetR836
Compliant withDVB-C
Receiving Frequency51~862Mhz
Demodulation
ChipsetDVB-C
Compliant withJ83-A /C
Demodulation16QAM/32QAM/64QAM/128QAM/256QAM
IF bandwidth6M,8M

Audio Decoding
Compliant withMPEG-1/2, HE AAC(optional),AC3(optional)
Video Decoding
Compliant withMPEG4 SP@L0-3,ASP@L0-5,MPEG2 SP@ML,MP@HLH.264 BP/MP/HP@ level 4.2
HDMI 1.4b with HDCP 1.2
Aspect ratio4:3/16:9
Video formatPAL/NTSC/SECAM
Resolution480i/480p/576i/576p/720p/1080i/1080p
Environmental
Operating Temperature0ºC~50ºC
Storage Temperature-5ºC~70ºC
Mechanical
Product Dimensions (W x H x D)148*96*24mm
Product WeightApprox. 0.4Kg
