Cjtouch 17\\" multi-touch Pcap touch display 17 touch screen display

CJTOUCH 17" multi touch PCAP touch monitor 17 touch screen monitor1 year Free warrantyAdvantage of our projected capacitive touch monitor:· Industrial Desgin With Excellent Durablity· Projected capacitive touch Technology Multi Touch 10 Touch Points· IP65 Touch Screen Surface Water-Proof Sealled&mi

Featured Products

CJTOUCH 17" multi touch PCAP touch monitor 17 touch screen monitor

1 year Free warranty

Advantage of our projected capacitive touch monitor:

· Industrial Desgin With Excellent Durablity

· Projected capacitive touch Technology Multi Touch 10 Touch Points

· IP65 Touch Screen Surface Water-Proof Sealled

· 3MM Enhanced Glass With Vandal Proof Resistance

· High Light Transmission Clear Glass

· Easy to Use:Plug and Works on Windows/Linux/(Android)

· Perfect Solutions For Use In Public

· VESA Mounting and Rear Mounting

· OEM/ODM& Customized Option: Brightness/Computer Integrated Inside/Etc

· Factory Competitive Price & Fast Delivery

Drawing :

Cjtouch 17

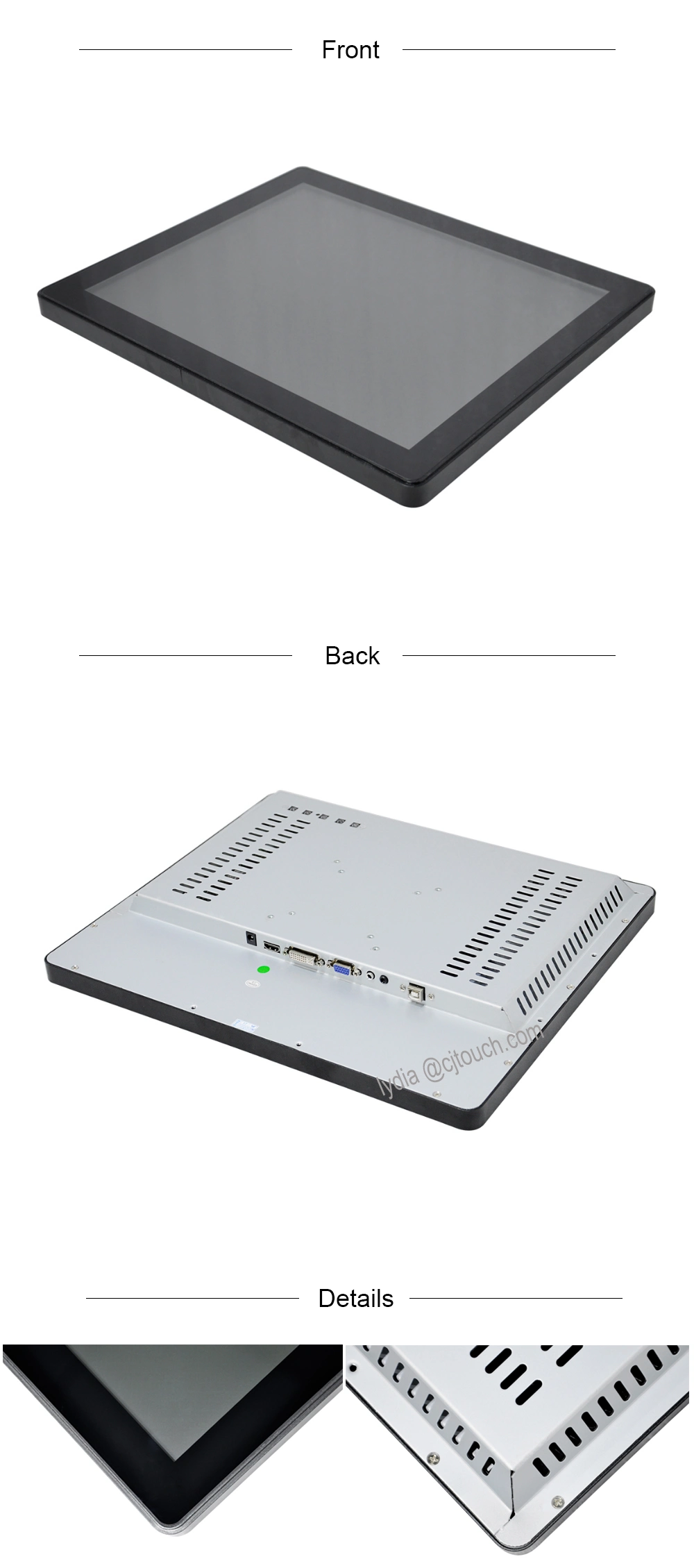

Details Pictures:

Cjtouch 17

SeriesWater-proof and Flat screen
LCD Type17" Active matrix TFT-LCD
Video InputVGA, DVI and HDMI
OSD controlsAllow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power SupplyType: External brick
Input (line) voltage: 100-240 VAC, 50-60 Hz
Output voltage/current: 12 volts at 4 amps max
Mount Interface1)VESA 75mm and 100mm
2)Mount bracket, horizontal or vertical
LCD Specification
Active Area(mm)337.920(H)×270.336(V)
Dot Pitch(mm)0.264×0.264
Nominal Input Voltage VDD+5.0V(Typ)
Viewing angle (v/h)85°/80°
Response Time(Rising)5ms/8ms
Support Color16.7M
Backlight MTBF(hr)30000
Touchscreen Specification
TypeCjtouch Projected Capacitive touch screen
Multi touch10points touch
Touch Life Cycle10 millions
Touch Response time8ms
Touch System InterfaceUSB interface
Power consumption+5V@80mA
External AC Power Adapter
OutputDC 12V /4A
Input100-240 VAC, 50-60 Hz
MTBF50000 hr at 25°C
Operating Temp.0~50°C
Storage Temp.-20~60°C
Operating RH:20%~80%
Storage RH:10%~90%


Cjtouch 17

Certificates :

Cjtouch 17

Application  :

Cjtouch 17

Who we are ?

Dongguan CJTouch Electronic Co., Ltd. is a leading provider of Touchscreen, Touch monitor and All-in-one computers. With advanced, cost-effective touch solutions, CJTouch believes in engaging with customers while providing customized services.
Established in 2006 and headquartered in Dongguan, China, CJTouch has proven to be reliable and trustworthy partners to help seamlessly integrate our products into your total solution.
 Over 10 years of combined experience in researching and developing touch-enabled screens and monitors.
 Two factories with over 200 skilled and qualified employees, including R & D engineers, technical experts and sales representatives.
What We Offer:
Through our consistent and high quality performance, CJTouch has got ISO 9001 certified and has earned CE, UL, FCC, RoHS and other international certifications.
 Single & Multi-touch screens (custom sizes available)
 Single & Multi-touch monitors (custom sizes and functions available)
 All-in-one computers
 ODM/OEM services
CJTouch has always relied on continuous innovation to stay ahead in touch technology. We are committed to delivering the most cutting-edge solutions in the industry.
 Surface Acoustic Wave (SAW) touch technology
 Infrared touch technology
 Projected Infrared Touch technology
We offer an extensive array of services with products being widely used in industries such as finance, gaming, retail, kiosk, health care, education, etc.
