Cjtouch 17-inch multi-touch Pcap touch screen display

CJTOUCH 17 inch multi touch pcap touch screen monitor1 year Free warrantyAdvantage of our projected capacitive touch monitor:· Industrial Desgin With Excellent Durablity· Projected capacitive touch Technology Multi Touch 10 Touch Points· IP65 Touch Screen Surface Water-Proof Sealled· 3MM Enhanced

Featured Products

CJTOUCH 17 inch multi touch pcap touch screen monitor

1 year Free warranty

Advantage of our projected capacitive touch monitor:

· Industrial Desgin With Excellent Durablity

· Projected capacitive touch Technology Multi Touch 10 Touch Points

· IP65 Touch Screen Surface Water-Proof Sealled

· 3MM Enhanced Glass With Vandal Proof Resistance

· High Light Transmission Clear Glass

· Easy to Use:Plug and Works on Windows/Linux/(Android)

· Perfect Solutions For Use In Public

· VESA Mounting and Rear Mounting

· OEM/ODM& Customized Option: Brightness/Computer Integrated Inside/Etc

· Factory Competitive Price & Fast Delivery


Drawing :

Cjtouch 17 Inch Multi Touch Pcap Touch Screen Monitor



Details Pictures:

Cjtouch 17 Inch Multi Touch Pcap Touch Screen Monitor


Specifications:
General
ModelCOT170-CFF03
SeriesWater-proof and Flat screen
LCD Type17" Active matrix TFT-LCD
Video InputVGA, DVI and HDMI
OSD controlsAllow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power SupplyType: External brick
Input (line) voltage: 100-240 VAC, 50-60 Hz
Output voltage/current: 12 volts at 4 amps max
Mount Interface1)VESA 75mm and 100mm
2)Mount bracket, horizontal or vertical
LCD Specification
Active Area(mm)337.920(H)×270.336(V)
Resolution1280×1024@75Hz
Dot Pitch(mm)0.264×0.264
Nominal Input Voltage VDD+5.0V(Typ)
Viewing angle (v/h)85°/80°
Contrast1000:1
Luminance(cd/m2)250
InterfaceLVDS
Response Time(Rising)5ms/8ms
Support Color16.7M
Backlight MTBF(hr)30000
Touchscreen Specification
TypeCjtouch Projected Capacitive touch screen
Multi touch10points touch
Touch Life Cycle10 millions
Touch Response time8ms
Touch System InterfaceUSB interface
Power consumption+5V@80mA
External AC Power Adapter
OutputDC 12V /4A
Input100-240 VAC, 50-60 Hz
MTBF50000 hr at 25°C
Environment
Operating Temp.0~50°C
Storage Temp.-20~60°C
Operating RH:20%~80%
Storage RH:10%~90%


Package:

Cjtouch 17 Inch Multi Touch Pcap Touch Screen Monitor


Certificates :


Cjtouch 17 Inch Multi Touch Pcap Touch Screen Monitor

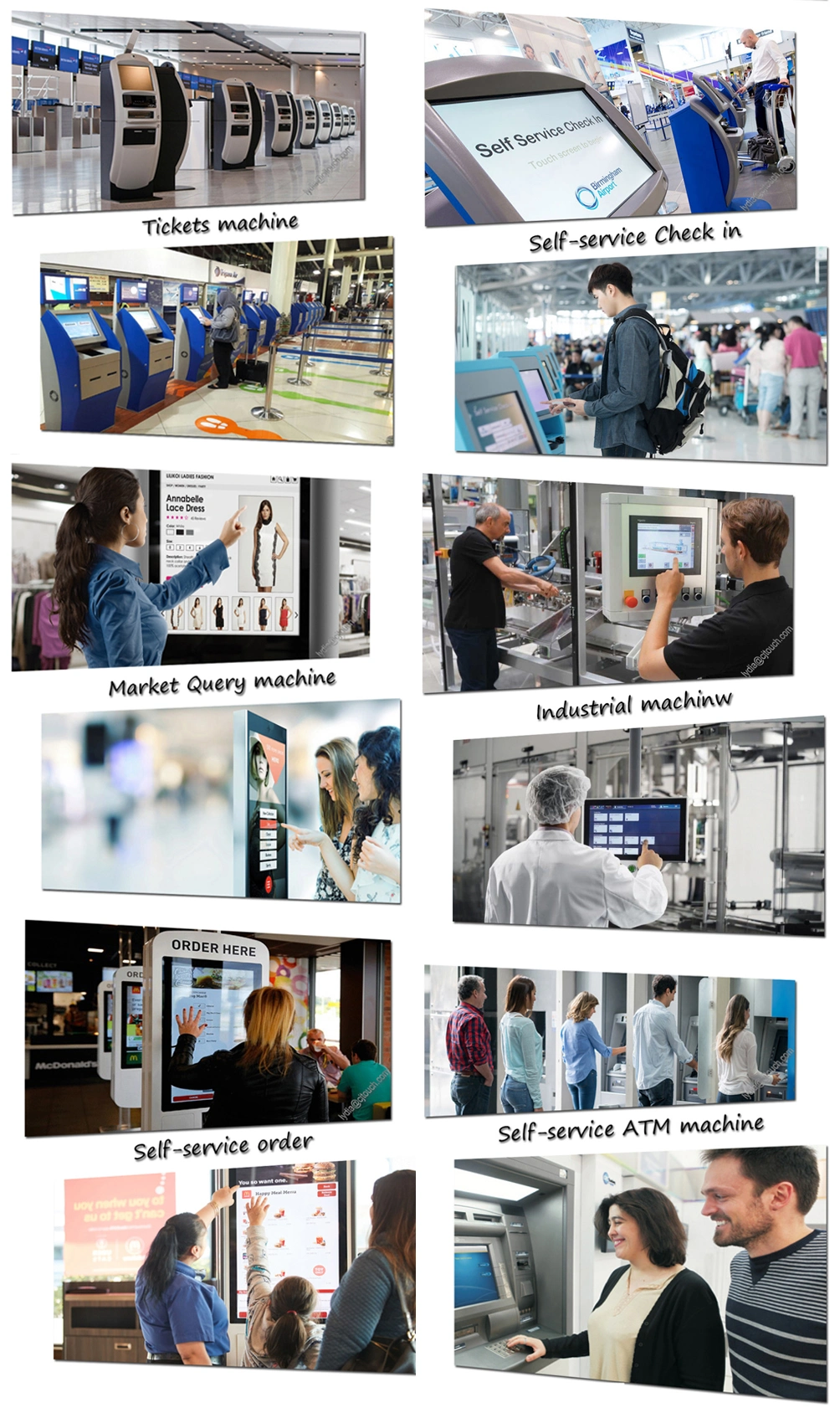

Application  :

Cjtouch 17 Inch Multi Touch Pcap Touch Screen Monitor
