17-inch SAW Waterproof open frame touch monitor Model No: COT170-AWF03
Size from 10.1"-65"

Mian Feature

IP65 surface Waterproof
With CJ touch SAW Touch Screen
ELO Compatible
USB Plug-and-play easy to use
Support Window-s/Linux/Android OS

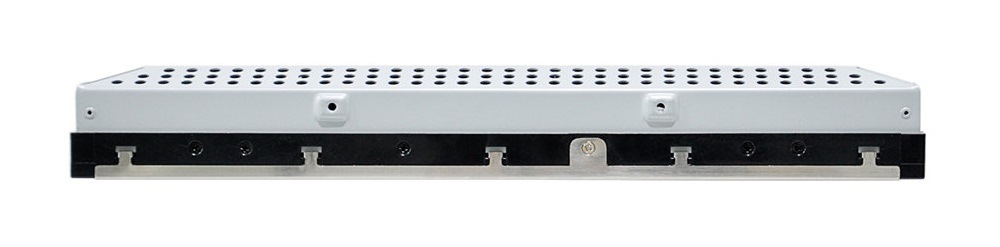

Detail Images



17

17
17
17
17

Specification

GeneralTouch Specification
ModelCOT170E-IWF03TypeSurface Acoustic Wave(SAW)
SeriesOpen Frame,IP65 Water-proof & Vandal Proof Meterial4/6 mm pure glass
Size Available15", 17", 19"Transducer positionGlass bevel angle, up surface 0.5mm
Housing MetalResolution4096 x 4096 ,Z-axis 256
Monitor Dimensions415*343*55mmPosition Accuracy< 2mm
LCD Type19" Active matrix TFT-LCDMulti-touchSingle Touch
Video InputVGA , DVI and HDMIResponse Time≤16ms
OSD controlsAllow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, ResetWorking voltage12V±1V & 5V±0.5V optional
Working Current80mA
Maximum Current100mA
Power SupplyType: External brickTransmittance>92% /ASTM
Input (line) voltage: 100-240 VAC, 50-60 HzTouch Force30g
Output voltage/current: 12 volts at 4 amps maxSurface HardnessMohs' 7
Mount Interface1)VESA 75mm and 100mmPCB Size85mm×55mm×10mm
2)Mount bracket, horizontal or verticalInterfaceUSB,RS232 can optional
OSSupport Windows/Android/Linux OSTouch Life Cycle50 millions
CertificationFCC, CE, IP65LCD Specification
Warranty1 YearResolution1280×1024@75Hz
External AC Power AdapterActive Area(mm)337.920(H)×270.336(V)
MTBFDC 12V /4ADot Pitch(mm)0.264(H)×0.264(V)
Input100-240 VAC, 50-60 HzViewing angle (v/h)85°/85°/88°/88°(CR>10)
MTBF50000 hr at 25°CContrast1000:1
EnvironmentLuminance(cd/m2)250
Operating Temp-10~55°CResponse Time5ms/5ms
Storage Temp-20~60°CSupport Color16.7M colors
Operating RH20%~80%Input Voltage+5.0V(Typ)
Storage RH10%~90%Backlight MTBF(hr)30000

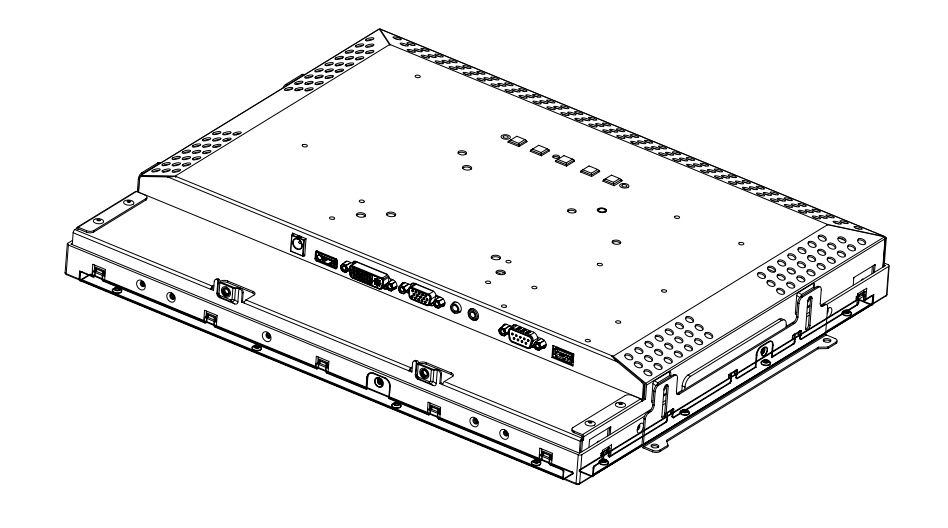

Drawing

17
17
17
17
